Brass Manifold Parts Integrated Air Vent Valve G1/2" Nut Threaded Flushing Drain Valves

Name: Brass Manifold Parts Integrated Air Vent Valve G12quot Nut Threaded Flushing Drain Valves
Brand: YORO
Price: 1 USD

Brand Name : YORO

Model Number : 6011-A+6012-A

Certification : ISO9001, ISO14001, ISO45001

Place of Origin : Zhejiang, China

MOQ : 1000 sets

Price : To be negotiated

Payment Terms : T/T

Supply Ability : 100000 sets per month

Delivery Time : 25-30 working days

Packaging Details : In cartons

Name : Brass Manifold Parts Integrated Supply Air-vent G1/2" Nut Threaded Flushing Drain Valves w/ meter outlets

Handle : Red for Supply Main (6011-A), Blue for Return Main (6012-A)

Maximum Pressure Rate : 10 Bar Hydraulic

Main Connections : Female Screws G1"

Meter Outlet : M10 x 1 Internal Threaded at both sides

Compatible Drain Hose : ∮15mm (I.D.)

Body Material : Easy Cutting Copper Zinc Apploy

Air Filter : Built-in Stainless steel mesh at Inlet of Air-vent

Body Color : Natural Brass, sand shot

Applicable Media : 5℃-100℃ Water

Test : 100% Leakage Testing

Contact Now

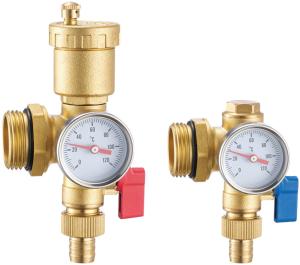

6011-A+6012-A Brass Manifold Parts Integrated Supply Air-vent G1/2" Nut Threaded Flushing Drain Valves w/ meter outlets

Brass Manifold Parts Integrated Air Vent Valve G1/2" Nut Threaded Flushing Drain Valves

Main Connection

Male Threads G1" with Adjusting Hex nut and self-sealing O-ring

Workable Drain Hose

I.D. 15mm

Drain Fitting Nut Threads

G1/2"

Meter Outlets

M10 X 1 Internal Threaded

Brass Manifold Parts Integrated Air Vent Valve G1/2" Nut Threaded Flushing Drain Valves

Main Connection

Male Threads G1" with Adjusting Hex nut and self-sealing O-ring

Workable Drain Hose

I.D. 15mm

Drain Fitting Nut Threads

G1/2"

Meter Outlet

M10 X 1 Internal Threaded
